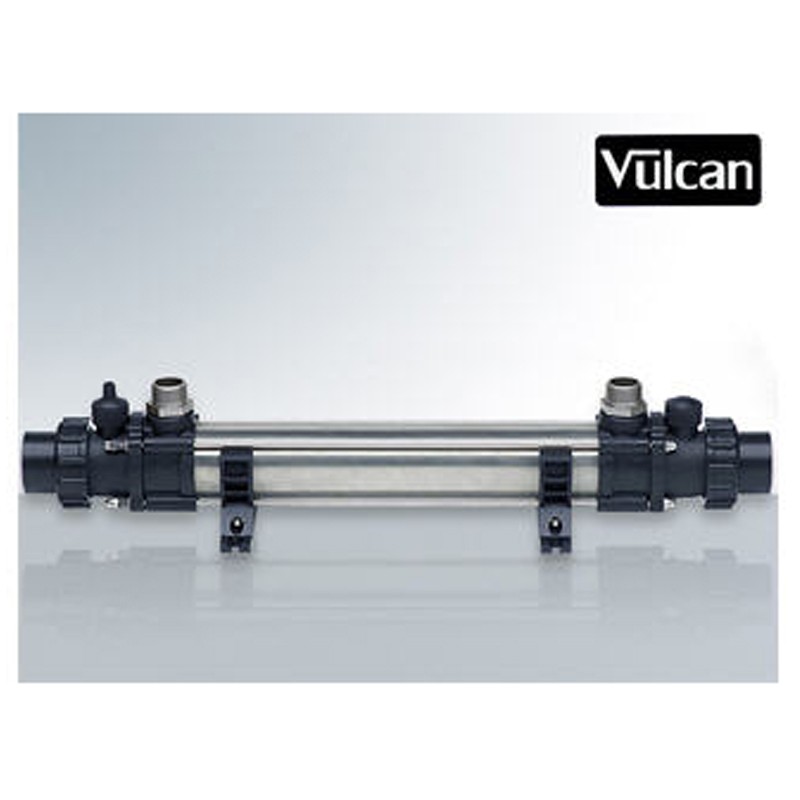

Vulcan 70kW-titanium Tubular heat exchanger

Vulcan 70kW-titanium Tubular heat exchanger.
The VULCAN TUBULAR titanium 70kW heat exchanger is very easy to use. It connects on the filtration and can heat your pool water by heat transfer between the pool water and your oil/gas/oil boiler (or heat pump). An outdoor pool is undergoing changes in the temperature of its environment. It is unfortunately not possible to enjoy as soon as the first rays of Sun in the spring until fall. A few levels missing for a water to an ideal temperature are obtained through the heat exchanger of pool VULCAN analog control 25 to 100kW.

VULCAN 70KW-TITANIUM TUBULAR HEAT EXCHANGER
The VULCAN TUBULAR titanium 70kW exchanger is designed using equipment and top quality components in the Elecro plant. It consists of a multitude of pure titanium tubes, attached to a turntable specially manufactured in polyamide. The outer tube is composed of BS 316 stainless steel, sealed at each end by the fittings of the circuits primary and secondary composed of an alloy of polymers. The heat exchanger is mounted on two adjustable supports that allow fixing to the ground or well wall. The VULCAN TUBULAR titanium 70kW heat exchanger is designed to allow the installer to choose the direction of flow of the circuits primary and secondary to allow a maximum energy savings. This is accomplished by bypassing the primary circuit (hot) in opposite direction to the secondary circuit (cold).

Technical features:
Type of pool: above ground or buried
Basin size: up to 80 m³
Heat exchanger: Titanium
Compatible electrolysis: Yes
Thermostat: without
Connection: Primary o1.5 "BSP and secondary Ø50 or o63mm"
Power supply: without
Installation: By pass
Heating power: 47.3kW
Primary water flow rate (m³/h): 5.2
Flow rate of water pool (m³/h): 17
Professional use: no
Dimensions: 141 x 817 x 158mm
Weight: 4kg
Warranty: 2 years
