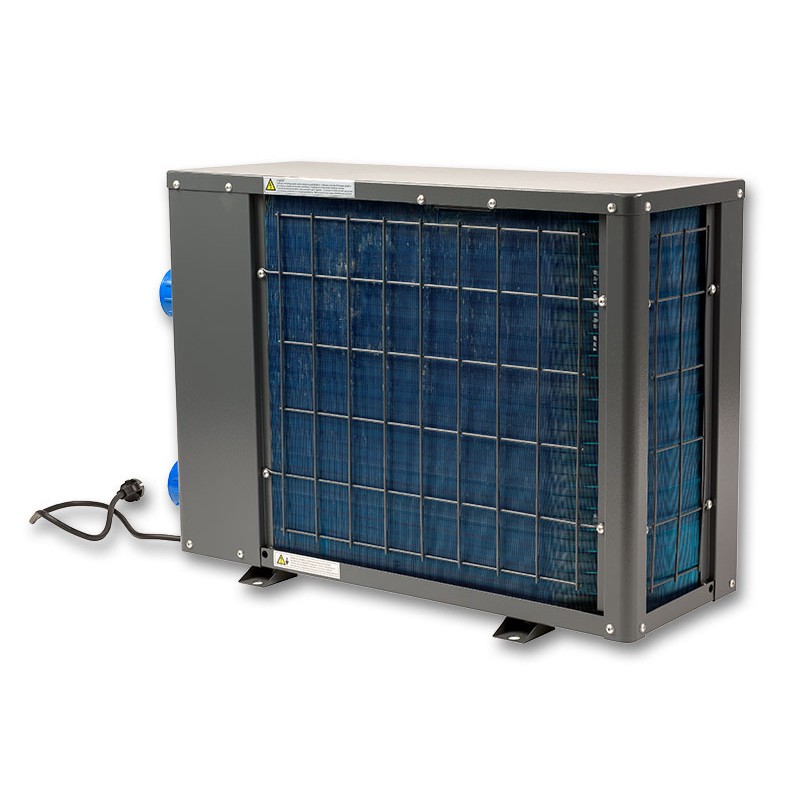

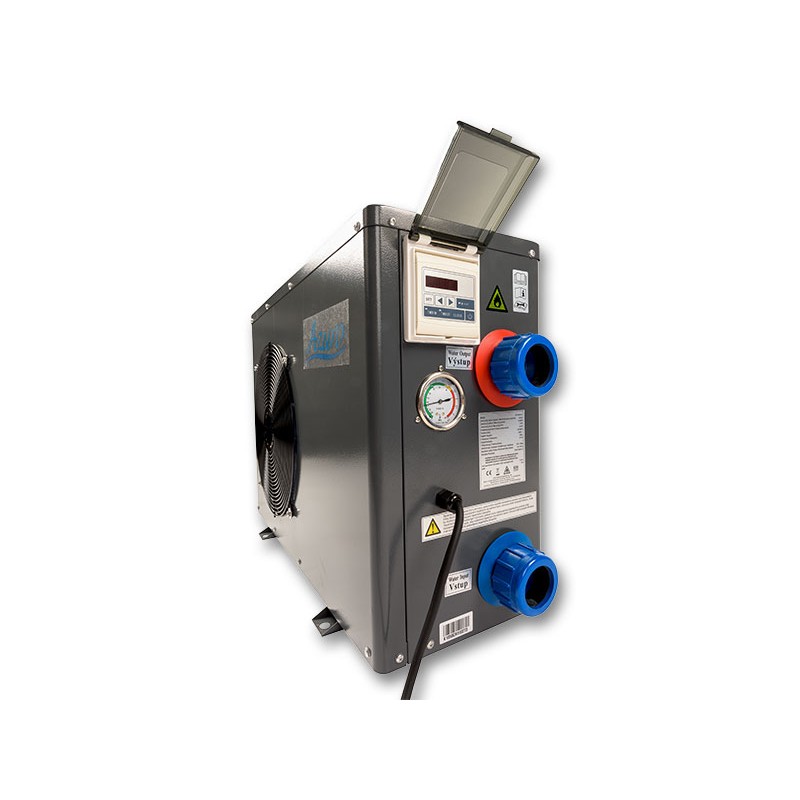

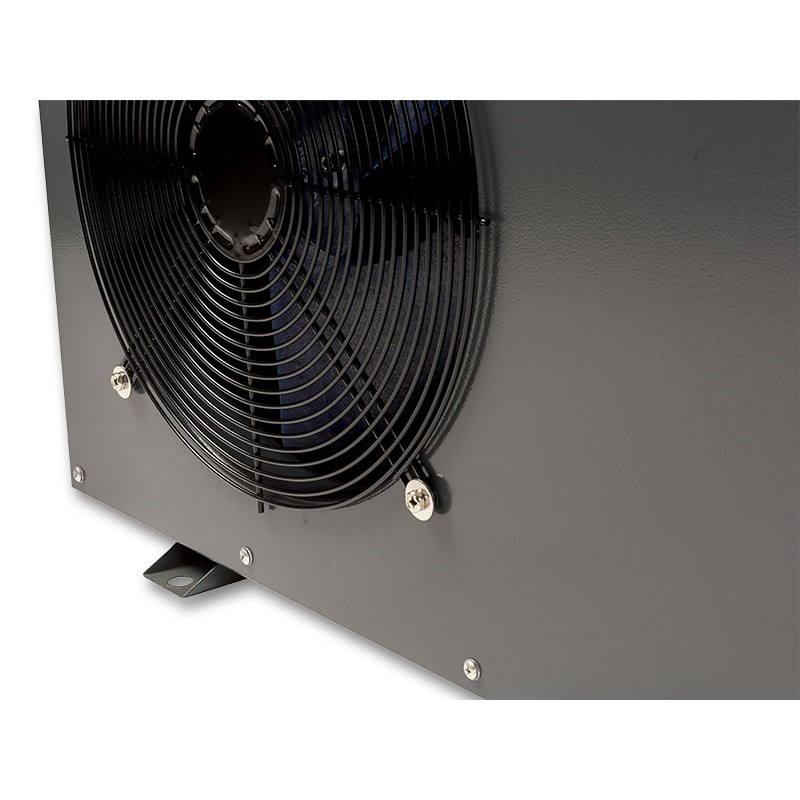

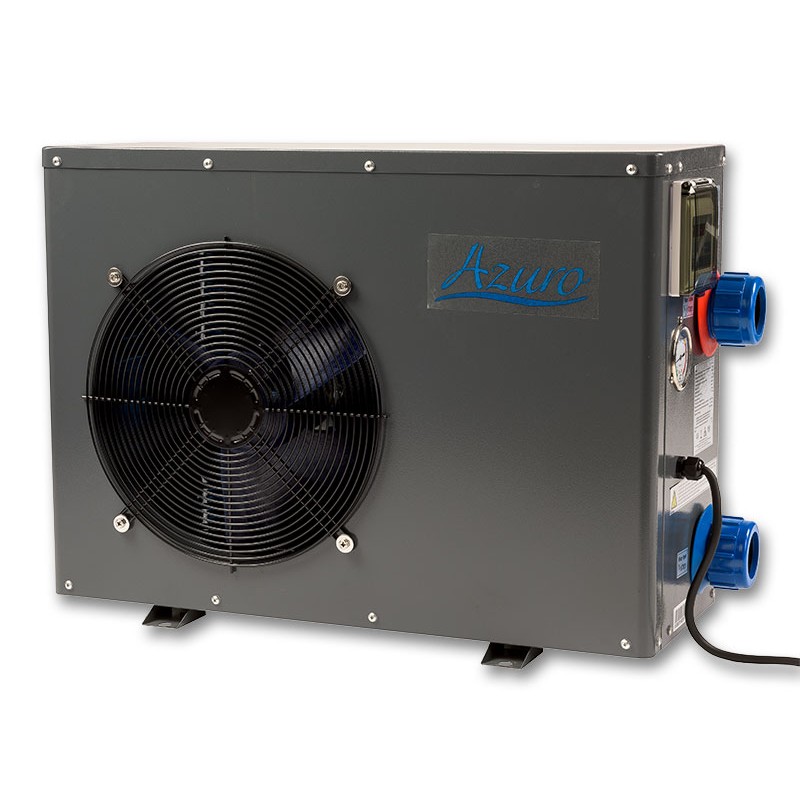

Azuro BP-85WS PoolMarina 8.5kW heat pump - 5m3h

Heat Azuro BP - 85HWS PoolMarina 8.5KW - 5M3H for pool 30 to 50 m3 black pump.
The BP-85WS heat pump is designed to heat the water in the pool while realizing energy savings. Optimal use is for swimming pools with water up to 50 m 3. The heat pump reaches the highest return to air temperatures between 15 and 26 ° C.

The principle of operation of the heat pump
The heat pump, through a cycle of compression and expansion of the fluid, to draw heat from the air around the pool. Air is driven by the fan through the evaporator where it transfers its heat to the heat transfer fluid (air cooled). The heat transfer fluid is then a compressor that compresses it and heated, routed to the spiral of the heat exchanger, where its heat passes through the water in the pool. Of the heat exchanger, the cooled fluid flows into the regulator, where its pressure is reduced and it cools quickly. Thus cooled fluid returns to the evaporator where it is heated by the air circulating. The whole process takes place smoothly and is monitored by the pressure and temperature sensors.

Connection of heat pump.
Input/output: 50 mm Standard (easy connection to all types of existing pipes).
Accessories included: ByPass Kit with valve 32/38 and protective cover.

Technical features:
Mains voltage: 230/50 V/Hz
Energy consumption: 1.7 kW
Operating power: 1,6 kW
Flow rate: 5 m3/h
Sound level at 10 m: < 45 dB

Intensity max: 7.8
Restored power: 8.5 kW (at 26 ° C)
Coefficient of performance COP: 5.6 (at 26 ° C)
Automatic defrosting of the evaporator: Yes
Interchange: Coil in titanium guaranteed for 15 years
Compressor brand: TOSHIBA Performance
Dimensions (LxWxH): 93 x 28 x 54 cm
Weight: 52 kg
Package size: 57 x 105 x 38 cm
Package weight: 56 kg
Warranty: 2 years
