Electric Bike MTF MTF SUV 29 Inch 720Wh 36V/20Ah Frame 19'

Electric bike MTF MTF SUV 6.4 29 inch 720Wh 36V/20Ah Frame 21'.

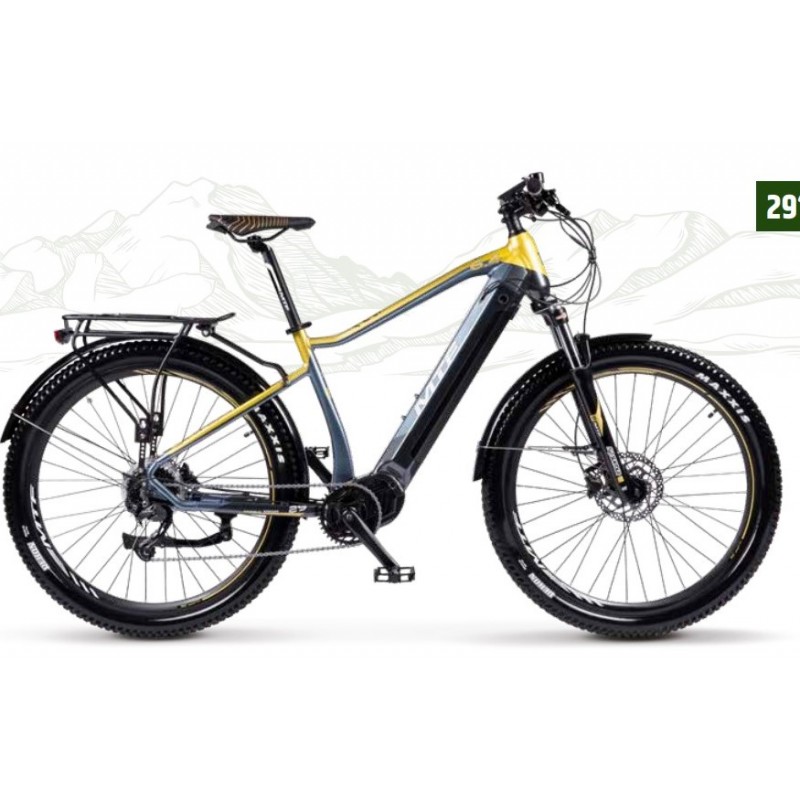

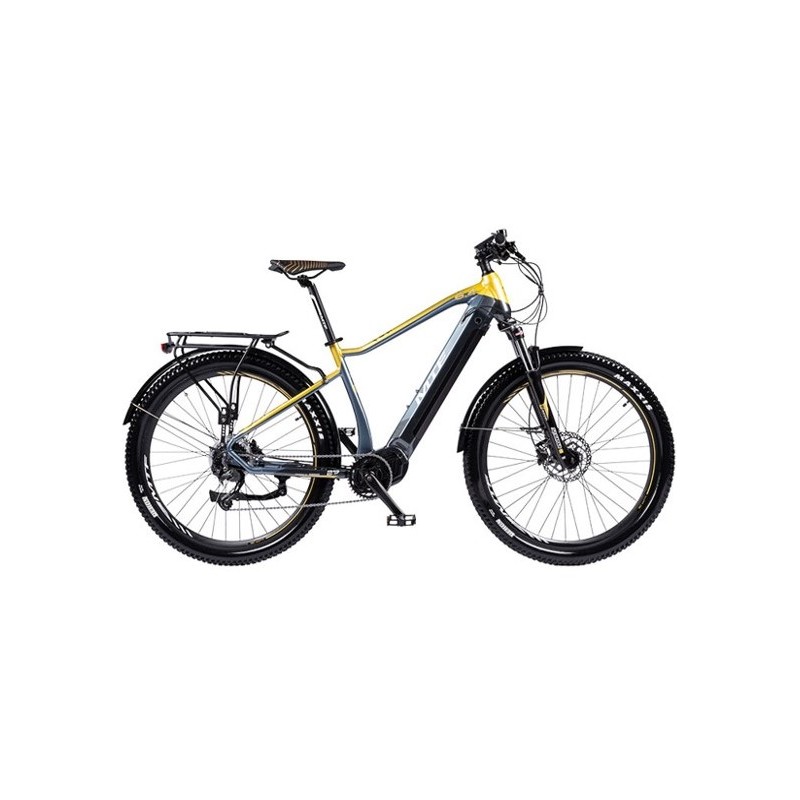

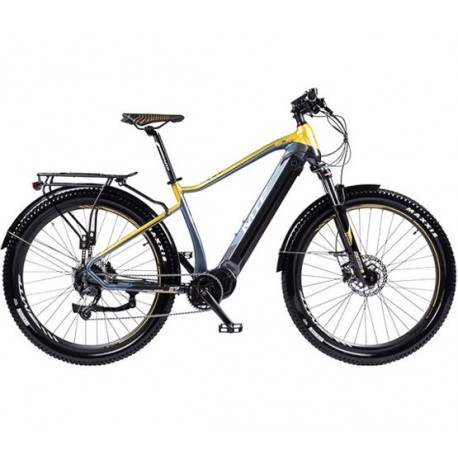

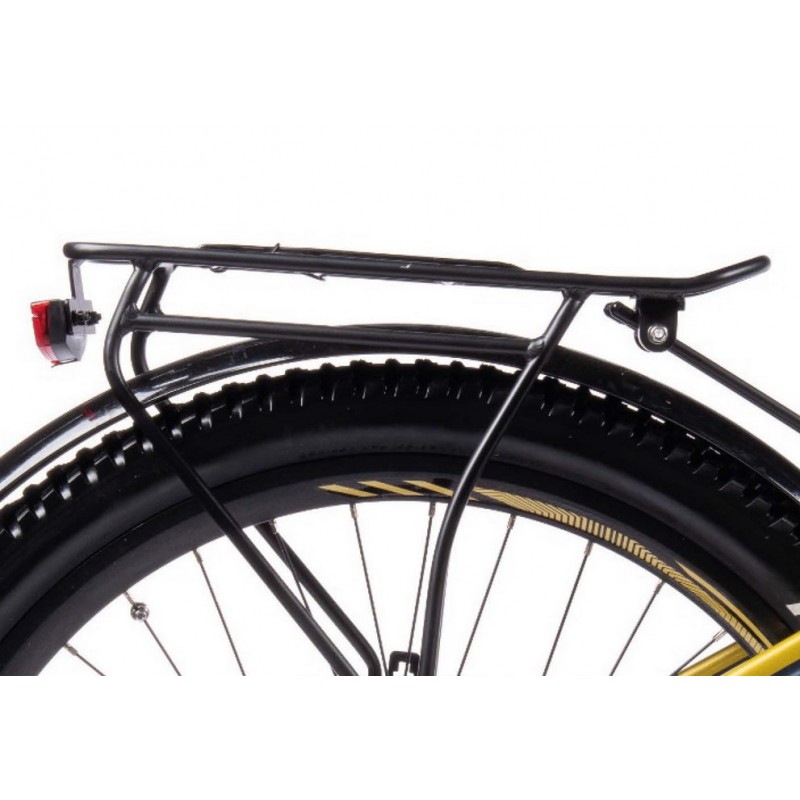

This SUV category electric mountain bike with mid-motor and geometry adapted to the mudguard with luggage rack is equipped with a Bafang motor and a Samsung battery. Very powerful, this mountain bike offers five pedal assistance modes and an average range of 160 km.

Technical description:
-Mark: MTF
- Category: Mountain MTB SUV
- Reference: MTB SUV 6.4W
- 19-inch mountain bike
- Frame: Aluminum
- Speed: 9
- Rear derailleur: Shimano Alivio RD-M3100
- Engine torque: 80 Nm
- Max. range: 160km
- Battery: Li-ion battery 36V/25 Ah (900 Wh) SAMSUNG cells included
- Warranty: 2 years.

The electric mountain bike MTB SUV 6.4 Black and Yellow is ideal for your rides in town or countryside.
With its frame in size 19 inches and equipped with 29-inch wheels with MAXXIS REKON tyres and FreiNS hydraulic disc Shimano BR-MT201, all complemented by a Suspended fork SR SUNTOUR XCM RLO.
The SHIMANO Alivio RD-M3100 rear derailleur will allow you to enjoy 9 speeds mechanical, in addition to 5 pedal assist modes Cycling.

The Bike mountain bike electric SUV is equipped with a Bafang motor with a power of 250 W (80 Nm torque) which will allow you to benefit from a smooth and smooth pedaling aid, for a pleasant ride.
This motor, located in the pedals of the bike, is coupled to Sensors whose role is to regulate the pressure on the pedals and provide assistance proportional to the pedaling effort.

The engine of the ATV is powered by a Samsung 36V/ 20Ah li-ion battery of which you can choose the capacity in order to enjoy more or less autonomy.
Note, however, that the range of an e-bike battery depends not only on its capacity, but also on the pedal assist mode selected, the weight and type of riding of the user as well as the type of terrain.
Located in the Aluminum frame From the bike, this battery is easy to access in order to be easily recharged.

This MTF electric bike is delivered pre-assembled but the assembly of the front wheel and pedals will have to be done by you.

Technical specifications:
Brand: MTF Reference: MTT SUV 6.4

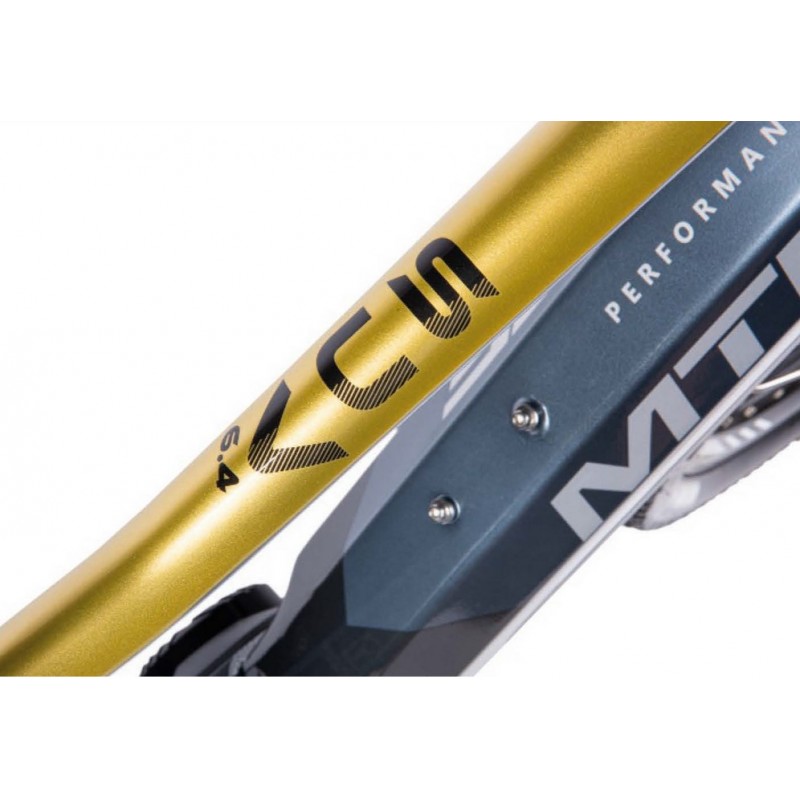

Material: Alu 6061 frame
Frame: 19"
Wheel: 29"
Battery: 36V/25 Ah (900 Wh) Li-ion battery SAMSUNG cells included
Range : 160 km
Central motor with pressure sensor BAFANG M410 (250W/max.500W, 80 Nm)
Motor: Zentral with Drucksensor BAFANG M410 (250W/max.500W, 80 Nm)"
Speed: With assistance. up to 25 km/h / Mit Unterstützung. up to 25 km/h

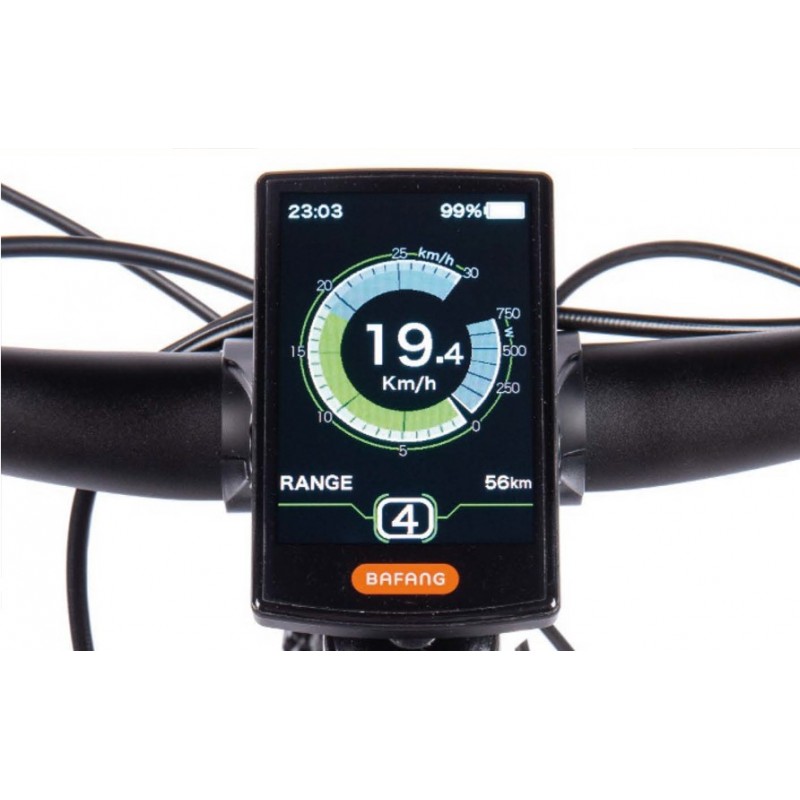

Display: Colour LCD, 5 degrees of assistance / Stufen assistance
Load Capacity :120 kg
Weight :19.5 kg
Fork: SR SUNTOUR XCM RLO, travel 100 mm, lockable.
Crank: BAFANG (38 teeth/zähne), crank: 170mm
Rear derailleur: SHIMANO Alivio RD-M3100
SHIMANO Alivio SL-M3100 Joysticks, 9 Speeds
Cassette: SHIMANO Alivio/Deore CS-HG400 (11 - 36 teeth/Zähne)
Channel: KMC X9E
Brakes: SHIMANO BR-MT201, Hydraul. Disc brake
Front hub: NOVATEC D761DSE
Rear hub: NOVATEC D762TSE
Rims: Felgen ALEX, 36H, 622x21
Spokes: "SAPIM, reinforced (14G, diameter 2 mm), black stainless steel
Tyres: MAXXIS FOREKASTER 29*2,35
Pedals: Aluminum, ball bearings
Handles with MTF SportGrip
MTF Sport handlebars (740 x 31.8 mm)
Stem :MTF Sport (31.8, length / Länge 60 mm)
Steering set: NECO, semi-integrated / halbintegriert 1 1/8'', black
Seatpost: MTF (30.4 / 400 mm)
Saddle: MTF NoPressure Sport
Charger: MTF 36V / 3A
Color: Black-Yellow
Warranty: 2 years.

Note: Recording and control.
It is essential to have your bike identified as soon as it is received by a Bicycode® number and to register it in the national file. This service is carried out by a professional: on presentation of the invoice we undertake to reimburse you a flat rate of 15 € * TTC maximum (*package of 15 € Ttc or the equivalent in foreign currency chf/£/$).
The Bicycode® is a code written on the frame of a bicycle, in order to deter theft and facilitate its return in case of theft.

Upon receipt of your MTF electric bike and before any use, it is necessary to have your bike checked and adjusted by a Bicycle Professional (mechanic, bike mechanic) to help you in its handling, and also to validate the warranty clauses, as well as for safety reasons.
This check/maintenance can be reimbursed upon presentation of invoice within 45 days after receipt of the bike and up to a maximum of 45 €* Ttc (*package of 45 € Ttc or the equivalent in foreign currency chf/£/$).

Brand: MTF
MTF is a European brand with a large assortment of bicycles. To order at an advantageous price.
The MTF e-bike are solid, serious, efficient, well equipped and very attractively priced.
The MTF electric bikes have a range of high-end components such as Samsung batteries, Shimano, new Shimano Steps EP8 intermediate engines, Bafang, etc.
You have the choice of frame size and battery capacity.
